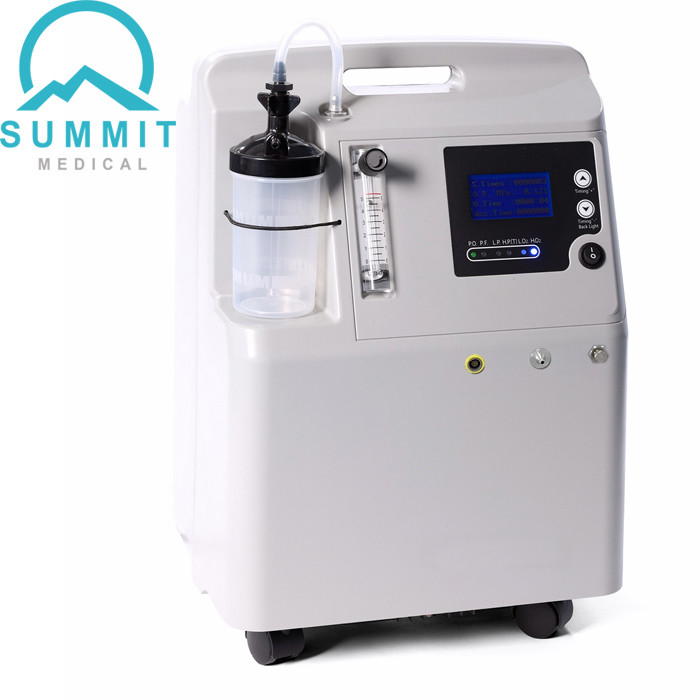

TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L

TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L
TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L

Large Image :  TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L

Product Details:
Place of Origin: China
Certification: CE, ISO13485, FDA 510K
Model Number: JAY-3AW
Payment & Shipping Terms:
Minimum Order Quantity: 16 Units
Price: Negotiable
Packaging Details: 1 Unit/Ctn, 16 Ctns/Pallet
Delivery Time: 7-10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000 Units Per Day

TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L

Description
Item Name: TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L Material: ABS
Flow Rate: 0.5-3L/min Outlet Material: 0.04-0.07Mpa
Purity: 93%(±3%) Technology: PSA
Application: Home And Medical Use Sound Level: ≤40db
Instrument Classification: Class II Warranty: 2 Years
High Light:

FDA510K Approved Medical Oxygen Concentrator

,

Medical Oxygen Concentrator 3L

,

ABS Medical Oxygen Concentrator

TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L

【Medical Oxygen Concentrator Introduction】


For medical, oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma etc. Medical oxygen concentator is designed to supply stable oxygen at 93%±3% for 24/7/365 continuously.

During the Covid-19 pandemic period, our 10LPM oxygen concentrator played an extraordinary role in the curing and recovery of Covid-19 patients. Besides supplying oxygen directly to patients, medical oxygen concentrator can also connect with HFNC, HBOC or BiPAP.



【Medical Oxygen Concentrator Specifications】


Item Name TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L
Model JAY-3AW
Output Flow 3LPM (Litre Per Minute)
Flow Meter Range 0 to 3 LPM
Outlet Pressure  0.04-0.07MPA(6-10PSI)
Purity  93% (±3%)
Temperature Operating Range 20℃-60℃
Sound Level ≤40db
Power Consumption ≤300w / ≤350w
Power Requirements

230V, 50HZ British Pulg

LCD Display Switch times, operating pressure, present working time, accumulated working time, presetting time from 10mins to 40hours.
Alarm Power failure alarm, high & low pressure alarm.
Accessories Humidifier, filter and oxygen cannula.
Net Weight 15Kgs
Machine Dimension 34.8*28*51cm
Packing Size

42*34*61cm


























【Medical Oxygen Concentrator Features】



1. With medical grade oxygen generator above 90%, better treatment effect for patients with pulmonary fibrodis (Star Model JAY-10).

2. Innovative cooling technology to ensure 24/7/265 operation.

3. Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable.

4. 4 flexible castors with 2 brakes, easy to move or suitable in any direction, safer and convenient.

5. Simple operation functions and easy-to-read LCD display.

6. Connected to HFNC, provide oxygen with stable high concentration, more comfortable (Star Model JAY-10).

7. Connected to HBOC, rapidly and effectively increase the patients' SPO2.

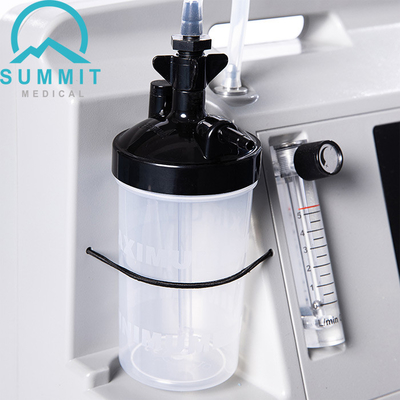

【Medical Oxygen Concentrator Details】



TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L 0

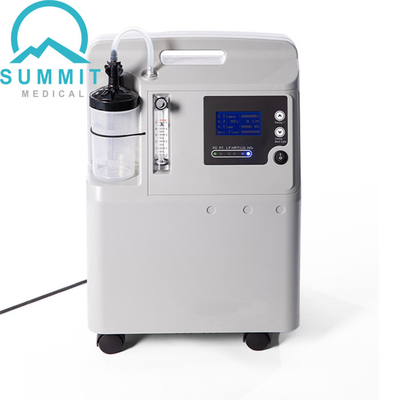

【Medical Oxygen Concentrator Functions】



TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L 1

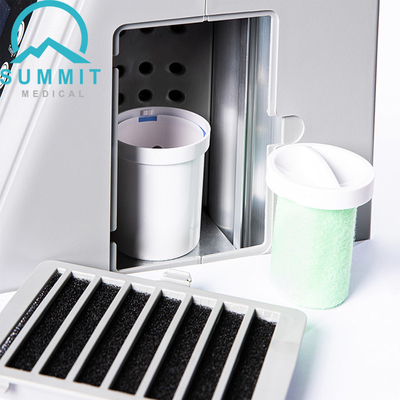

【Medical Oxygen Concentrator Core Parts】



TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L 2TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L 3



【Medical Oxygen Concentrator Models】



TUV CE ISO13485 FDA510K Approved Medical Oxygen Concentrator 3L 4


【Medical Oxygen Concentrator Applications】


For Medical Use
Medical oxygen concentrator is beneficial to cure the respiratory disease or heart and blood vessel system, chronic pulmonary system and other oxygen lacking symptoms etc.


For Health Care
Medical oxygen generators can be used for athletics and intellectuals and brainworkers etc. to eliminate fatigue and also suit for the departments of health care, sanatorium, healthy, plateau military camps and hotels and other places where need oxygen.
