Medical Oxygen Concentrator Portable With 5LPM Flow Rate

Certification
China Suzhou Summit Medical Co., Ltd certification
China Suzhou Summit Medical Co., Ltd certification
I'm Online Chat Now

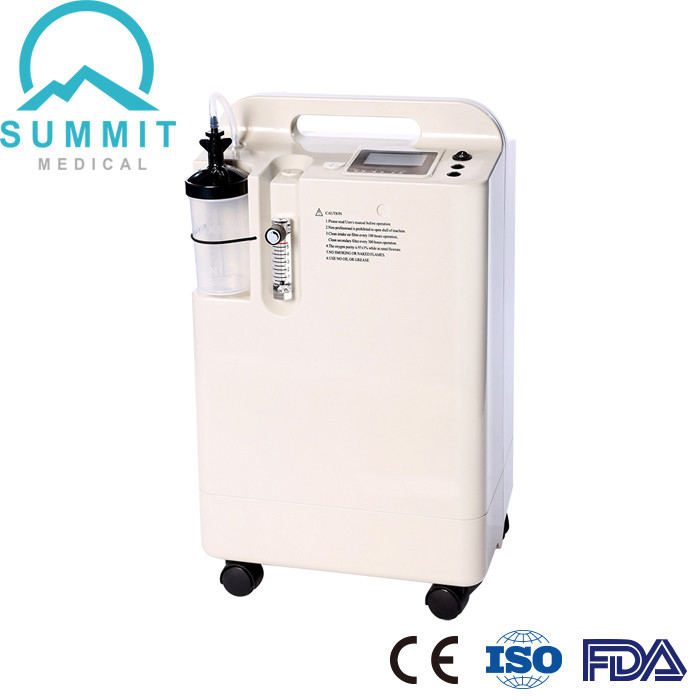

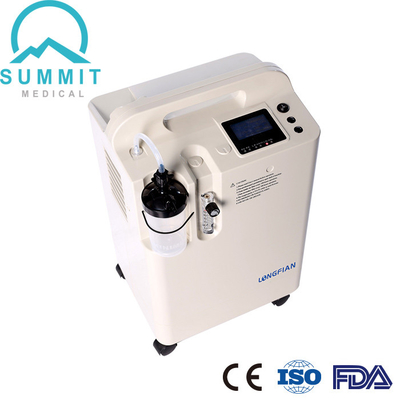

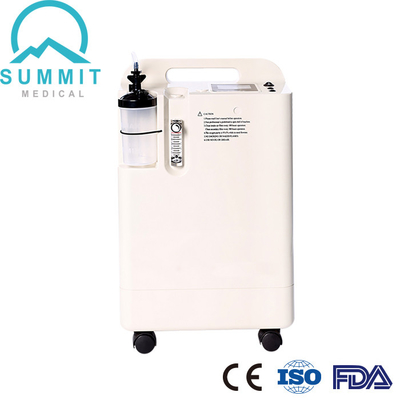

Medical Oxygen Concentrator Portable With 5LPM Flow Rate

Medical Oxygen Concentrator Portable With 5LPM Flow Rate
Medical Oxygen Concentrator Portable With 5LPM Flow Rate Medical Oxygen Concentrator Portable With 5LPM Flow Rate Medical Oxygen Concentrator Portable With 5LPM Flow Rate

Large Image :  Medical Oxygen Concentrator Portable With 5LPM Flow Rate

Product Details:
Place of Origin: China
Certification: CE, ISO13485, FDA 510K
Model Number: JAY-5BW
Payment & Shipping Terms:
Minimum Order Quantity: 16 Units
Price: Negotiable
Packaging Details: 1 Unit/Ctn, 16 Ctns/Pallet
Delivery Time: 7-10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000 Units Per Day

Medical Oxygen Concentrator Portable With 5LPM Flow Rate

Description
Item Name: Medical Oxygen Concentrator Portable Oxygen Concentrator With 5LPM Flow Rate Material: ABS
Flow Rate: 0.5-5L/min Outlet Material: 0.04-0.07Mpa
Purity: 93%(±3%) Technology: PSA
Sound Level: ≤40db Instrument Classification: Class II
Warranty: 2 Years After-Sales Service: Online Technical Support
High Light:

5LPM Medical Oxygen Concentrator Portable

,

93% Medical Oxygen Concentrator Portable

Medical Oxygen Concentrator Portable Oxygen Concentrator with 5LPM Flow Rate

【Medical Oxygen Generator Introduction】

For medical, oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma etc. Portable oxygen concentator is designed to supply stable oxygen at 93%±3% for 24/7/365 continuously.

During the Covid-19 pandemic period, our 10LPM oxygen concentrator played an extraordinary role in the curing and recovery of Covid-19 patients. Besides supplying oxygen directly to patients, portable oxygen concentrator can also connect with HFNC, HBOC or BiPAP.



【Medical Oxygen Generator Specifications】


Item Name Medical Oxygen Concentrator Portable Oxygen Concentrator with 5LPM Flow Rate
Model JAY-5BW
Output Flow 5LPM (Litre Per Minute)
Flow Meter Range 0 to 5 LPM
Outlet Pressure  0.04-0.07MPA(6-10PSI)
Purity  93% (±3%)
Temperature Operating Range 20℃-60℃
Sound Level ≤40db
Power Consumption ≤300w / ≤350w
Power Requirements

230V, 50HZ British Pulg

LCD Display Switch times, operating pressure, present working time, accumulated working time, presetting time from 10mins to 40hours.
Alarm Power failure alarm, high & low pressure alarm.
Accessories Humidifier, filter and oxygen cannula.
Net Weight 15Kgs
Machine Dimension 34.8*28*51cm
Packing Size

42*34*61cm
























 【Medical Generator Features】



1. The oxygen concentrator is featured by low noise design with sound less of less than 40bd, take up less space;

2. The oxygen generator used USA imported humidifier, 6PSI pressure release;

3. Innovative big LCD display;

4. Innovative "cooling" technology to improve reliability and life of the unit;

5. Higher outlet pressure to ensure proper flow delivery.



【Medical Oxygen Generator Benefits】



1. Strengthens your heart, reducing the risk of heart attacks & help with cardiovascular activity;
2. Speeds up the body's recovery after physical exertion;
3. Stimulate brain activity, increase memory capacity;
4. Prevent disease, relieve hangovers;
5. Reduce stress & calm anxiety;
6. Alleviate tension headaches, remedy irregular sleeping patterns.



【Medical Oxygen Generator Details】



Medical Oxygen Concentrator Portable With 5LPM Flow Rate 0



【Medical Oxygen Generator Functions】



Medical Oxygen Concentrator Portable With 5LPM Flow Rate 1



【Medical Oxygen Generator Core Parts】



Medical Oxygen Concentrator Portable With 5LPM Flow Rate 2Medical Oxygen Concentrator Portable With 5LPM Flow Rate 3



【Medical Oxygen Generator Models】



Medical Oxygen Concentrator Portable With 5LPM Flow Rate 4


【Medical Oxygen Generator Applications】


Medical Oxygen Concentrator Portable With 5LPM Flow Rate 5



【Medical Oxygen Generator Experiences】



Medical Oxygen Concentrator Portable With 5LPM Flow Rate 6
