Product Details:
|
| Item Name: | CE Certified Medical Grade Fingertip Pulse Oximeter Handheld Oximeter Blood Oxygen Saturation Monitor | Size: | 63*41*31mm |
|---|---|---|---|
| Color: | Yellow, Blue, Black | Material: | Acrylic, Metal, Plastic |
| Net Weight: | 70g | Display: | OLED |
| SpO2 Measurement: | 35%~99% | Pulse Rate Range: | 30bpm~240bpm |
| Accuracy: | ±1% (90%-99%); ±2%(70%-89%); Unspecified (≤70%) For Spo2 | Warranty: | 1 Year |
| Highlight: | CE 30bpm Fingertip Pulse Oximeter,CE 70g handheld pulse oximeter,70g 20S Fingertip Pulse Oximeter |
||

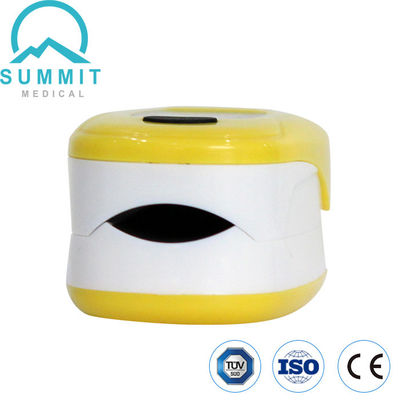

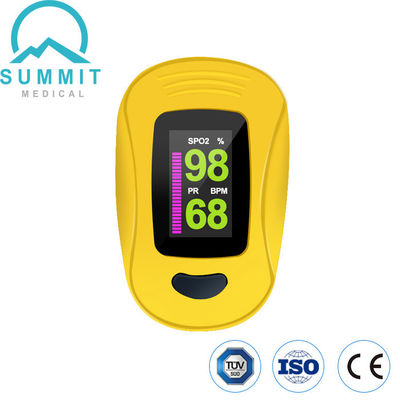

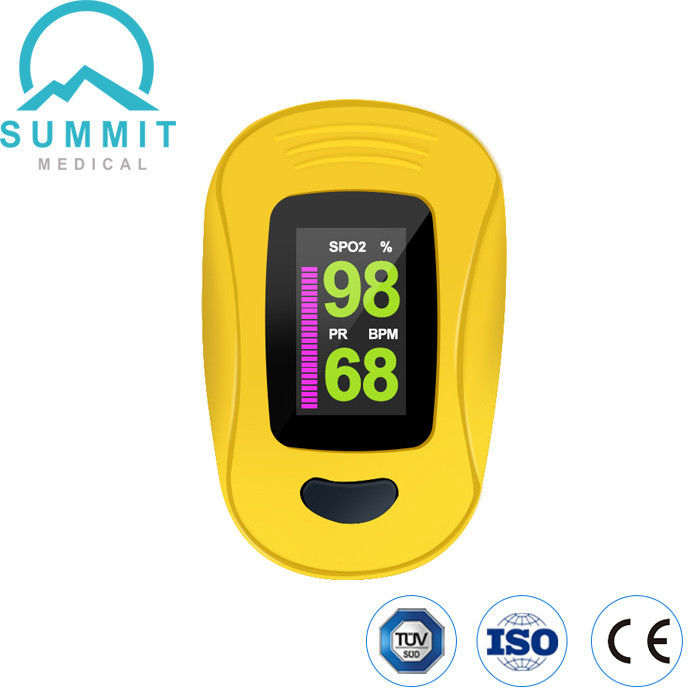

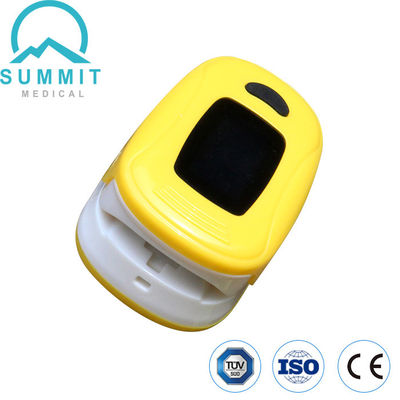

CE Certified Medical Grade Fingertip Pulse Oximeter Handheld Oximeter Blood Oxygen Saturation Monitor
【Fingertip Pulse Oximeter Parameters】
Fingertip Pulse Oximeter is a quick and precise way to check pulse rates and blood oxygen saturation levels.
Self-adjusting finger clamp plus simple one-button design allows for easy operation.
Small portable size makes it easy to handle and carry.
| Display Type |
Multi-Color TFT Display; 1 Inch
|
| Measurement Range |
Spo2: 35%-99%
|
| Pulse Rate(PR): 30BPM-240BPM | |
| Measurement Time | ≤20S |
| Resolution |
Spo2: ±1%
|
| Pulse Rate(PR): ±1BPM | |
| Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion |
≤0.4%
|
| Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
| Power Consumption |
<30mA
|
| Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
|
Humidity: 30%~90%
|
|
| Air Pressure: 59KPa~107.4KPa | |
| Dimension | 63*41*31mm |
| Net Weight | 70g (Batteries Not Included) |
| Package | 1 Unit/Box, 200 Boxes/Ctn |
| Carton Size | 36.5*42.5*35.5cm |
| G.W./Carton | 15KGS |
| Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
| Certificates | CFDA, FSC, ISO13485 & CE (TUV), DOC |
| Warranty | 1 Year |
【Fingertip Pulse Oximeter Features】
1. Multi-Color TFT Display, 4 display modes, have big-font display, digital display and plethysmogram display;
2. Change directions manually according to patient observe needs;
3. Alarm lamp display and heart rate pulse synchronization;
4. Low power consumption, 50 hours continuous to work;
5. It has the function of Perfusion Index to better get the pulse oxygen perfusion;
6. Automatic power off when no signals for 8s;
7. Small and light weight, convenient to carry;
8. Accurately mornitoring even in low perfusion ≤0.4%;
9. Audible, visual alarm and low voltage warning indicator are available.
【Fingertip Pulse Oximeter Analysis】
![]()
【Fingertip Pulse Oximeter Functions】
![]()
【Fingertip Pulse Oximeter Applications】
![]()
【Fingertip Pulse Oximeter Test Reports】
![]()
【Fingertip Pulse Oximeter Qualifications】
Completed documents & certificates: CFDA, FSC, ISO13485, CE Certificate, DOC and Test Report etc.
![]()
