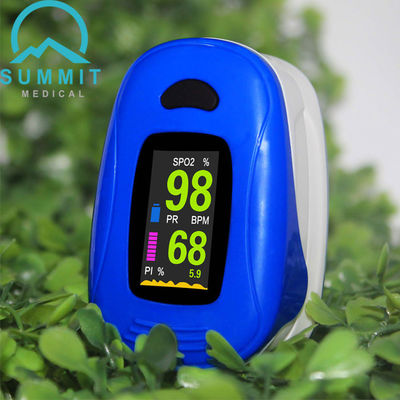

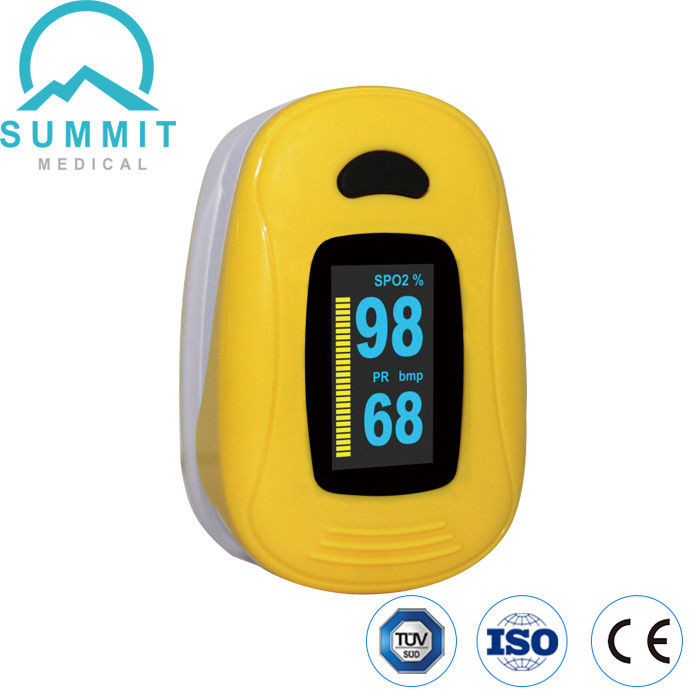

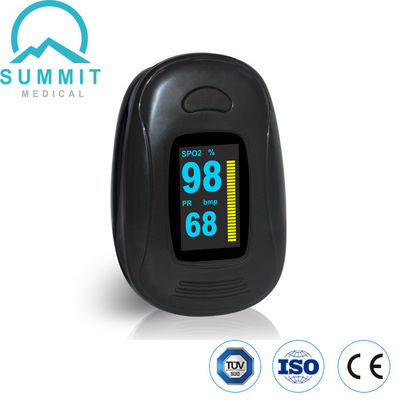

Large OLED Digital Display Fingertip Pulse Oximeter Blood Oxygen Saturation Monitor with CE ISO13485 Certificate
【Fingertip Pulse Oximeter Parameters】
Pulse oximetry is a method for measuring and monitoring a patient’s oxygen saturation.
It gives the readings of peripheral oxygen saturation and arterial oxygen saturation.
The sensor device is placed on a thin part of a person’s body, earlobe or fingertip, in the case of an infant across the foot.
| Display Type |
Multi-Color TFT Display; 1 Inch
|
| Measurement Range |
Spo2: 35%-99%
|
| Pulse Rate(PR): 30BPM-240BPM |
| Measurement Time |
≤20S |
| Resolution |
Spo2: ±1%
|
| Pulse Rate(PR): ±1BPM |
| Accuracy |
±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion |
≤0.4%
|
| Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
| Power Consumption |
<30mA
|
| Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
|
Humidity: 30%~90%
|
| Air Pressure: 59KPa~107.4KPa |
| Dimension |
63*41*31mm |
| Net Weight |
70g (Batteries Not Included) |
| Package |
1 Unit/Box, 200 Boxes/Ctn |
| Carton Size |
36.5*42.5*35.5cm |
| G.W./Carton |
15KGS |
| Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
| Certificates |
CFDA, FSC, ISO13485 & CE (TUV), DOC |
| Warranty |
1 Year |
【Fingertip Pulse Oximeter Features】
1. Multi-Color TFT Display, 4 display modes, have big-font display, digital display and plethysmogram display;
2. Change directions manually according to patient observe needs;
3. Alarm lamp display and heart rate pulse synchronization;
4. Low power consumption, 50 hours continuous to work;
5. It has the function of Perfusion Index to better get the pulse oxygen perfusion;
6. Automatic power off when no signals for 8s;
7. Small and light weight, convenient to carry;
8. Accurately mornitoring even in low perfusion ≤0.4%;
9. Audible, visual alarm and low voltage warning indicator are available.
【Fingertip Pulse Oximeter Advantages】
【Fingertip Pulse Oximeter Functions】
【Fingertip Pulse Oximeter Alarm Design】
【Fingertip Pulse Oximeter Alarm Application】
【Fingertip Pulse Oximeter Test Reports】
【Fingertip Pulse Oximeter Qualifications】
Completed documents & certificates: CFDA, FSC, ISO13485, CE Certificate, DOC and Test Report etc.
