Product Details:
|
| Item Name: | Medical Portable Fingertip Pulse Oximeter Blood Oxygen Meter With Colorful OLED Display | Size: | 63*41*31mm |
|---|---|---|---|
| Color: | Yellow, Blue, Black | Material: | Acrylic, Metal, Plastic |
| Net Weight: | 70g | Display: | OLED |
| SpO2 Measurement: | 35%~99% | Pulse Rate Range: | 30bpm~240bpm |
| Testing Time: | Within 5 Sec. | Instrument Classification: | Class II |
| High Light: | 70g TFT Display Fingertip Pulse Oximeter,70g finger tip pulse oximeter,20S Fingertip Pulse Oximeter |
||

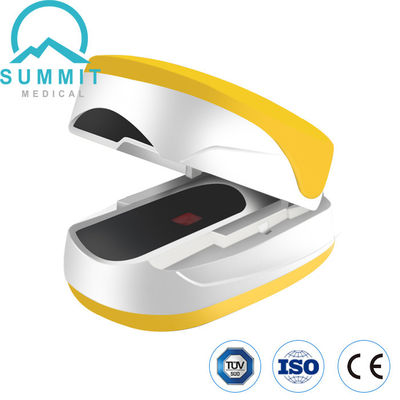

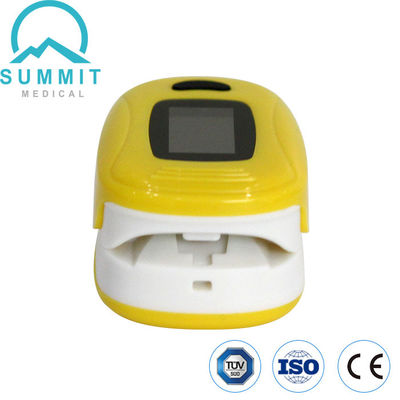

Medical Use Finger Tip Pulse Oximeter Blood Oxygen Meter With Four Way Rotation
【Fingertip Pulse Oximeter Parameters】
The fingertip pulse oximeter is a small, clip-like device that is commonly placed on a finger to get readings.
It is often used in a critical care institution such as hospitals and emergency rooms.
Some physicians, such as pulmonologists, might use it in their office.
| Display Type |
Multi-Color TFT Display; 1 Inch
|
| Measurement Range |
Spo2: 35%-99%
|
| Pulse Rate(PR): 30BPM-240BPM | |
| Measurement Time | ≤20S |
| Resolution |
Spo2: ±1%
|
| Pulse Rate(PR): ±1BPM | |
| Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion |
≤0.4%
|
| Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
| Power Consumption |
<30mA
|
| Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
|
Humidity: 30%~90%
|
|
| Air Pressure: 59KPa~107.4KPa | |
| Dimension | 63*41*31mm |
| Net Weight | 70g (Batteries Not Included) |
| Package | 1 Unit/Box, 200 Boxes/Ctn |
| Carton Size | 36.5*42.5*35.5cm |
| G.W./Carton | 15KGS |
| Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
| Certificates | CFDA, FSC, ISO13485 & CE (TUV), DOC |
| Warranty | 1 Year |
【Fingertip Pulse Oximeter Features】

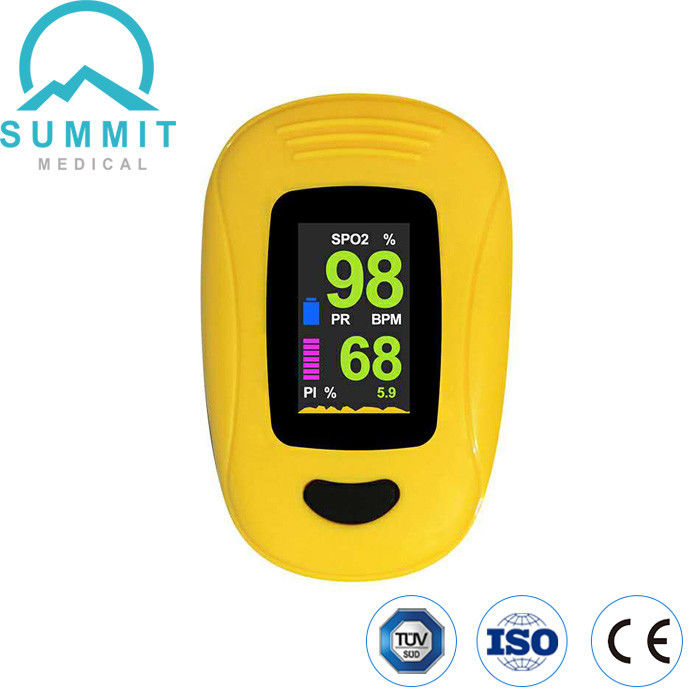

1. Colorful OLED Display.
2. Multiple monitoring index including pulse oxygen saturation (SpO2), pulse rate (PR), perfusion index (PI),
pulse intensity bar-graph, photoplethysmogram.
3. Accurate and Rapid result in just 5 seconds.
4. Intelligent Monitoring: Display color changes automatically in case of abnormal parameters.
5. Alarm limit can be set manually.
6. Four directions display for easy viewing.
7. Automatically power off when no signals after 8 seconds.
8. Accurately monitoring even in low perfusions 0.4%.
9. Audible, visual alarm and low voltage indicator are available.
10. Low Power consumption. 50 hours continuous operation.
【Fingertip Pulse Oximeter Analysis】
【Fingertip Pulse Oximeter Power Saving】
【Fingertip Pulse Oximeter Displaying】
【Fingertip Pulse Oximeter Test Reports】
【Fingertip Pulse Oximeter Qualifications】
Completed documents & certificates: CFDA, FSC, ISO13485, CE Certificate, DOC and Test Report etc.
【Fingertip Pulse Oximeter FAQ】
Q1: What is normal for pulse oximeter reading?
A1: Values under 60 mm Hg usually indicate the need for supplemental oxygen.
Normal pulse oximeter readings usually range from 95 to 100 percent. Values under 90 percent are considered low.
Q2: Is this Fingertip Pulse Oximeter freely selling in European markets?
A2: Yes. Our Fingertip Pulse Oximeter is approved by both CE & ISO (issused by TUV).
Fully complied with Medical Directive 93/42/EEC.
Q3: Are free samples available before official mass purchasing?
A3: We can support you free samples, and you just need to bear the courier charge.
Q4: Why there are so many BLOODY CHEAP OXIMETERS with price less than $4, $3 or even less than $2 per piece?
A4: Well, you need the ability to identify the difference bewteen a Electronic Grade Oximeters and a Medical Grade Oximeter.
First of all, the executivce standards for the electronic one and the medical one are way different.
You can judge it from the certificates and test reports that sent by your suppliers, pay attention to the testing standards,
issuing parties of the certifications, for those points you can refer to A2.
For American market, pls check the manufacturer's information in US FDA website to check its FDA registration status and
FDA510K.
Second, the oximeters are mainly used in hospitals and emergency rooms by the doctors or physicians, so the reading must
be accurate, onsidering the safety and stability, it is strongly recommended to use a Medical Grade Oximeter.
At last, the price is decided by it production cost like raw materials, displaying way(LCD, LED, OLED etc.),
and intelligent designs (alarming, rotation etc.).
