Product Details:
|
Features: | Simple, Convenient, Accurate | Item Name: | CE Certified Medical Grade Fingertip Pulse Oximeter Handheld Oximeter Blood Oxygen Saturation Monitor |
---|---|---|---|
Size: | 63*41*31mm | Color: | Yellow, Blue, Black |
Material: | Acrylic, Metal, Plastic | Net Weight: | 70g |
Display: | OLED | SpO2 Measurement: | 35%~99% |
Pulse Rate Range: | 30bpm~240bpm | Accuracy: | ±1% (90%-99%); ±2%(70%-89%); Unspecified (≤70%) For Spo2 |
High Light: | 3.1cm wireless digital finger pulse oximeter,3.1cm portable finger pulse oximeter,4.1cm wireless digital finger pulse oximeter |

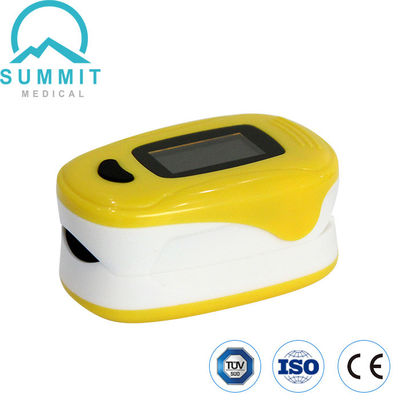

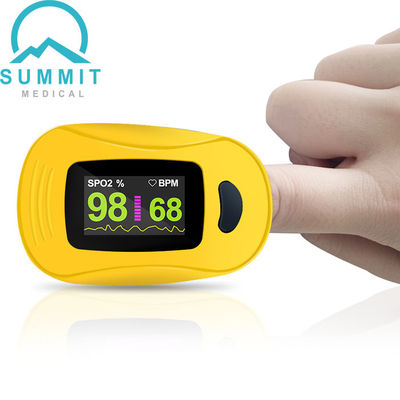

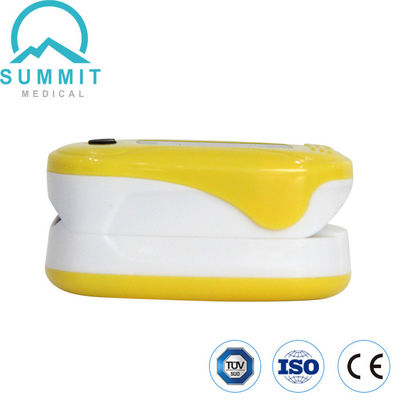

Summit Medical Dual Color OLED Pulse Oximeter Fingertip, Blood Oxygen Saturation Monitor (SpO2)
【Fingertip Pulse Oximeter Parameters】
The fingertip pulse oximeter measures your blood oxygen saturation and pulse rate.
Display Type |
Multi-Color TFT Display; 1 Inch
|
Measurement Range |
Spo2: 35%-99%
|
Pulse Rate(PR): 30BPM-240BPM | |
Measurement Time | ≤20S |
Resolution |
Spo2: ±1%
|
Pulse Rate(PR): ±1BPM | |
Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
Low Perfusion |
≤0.4%
|
Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
Power Consumption |
<30mA
|
Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
Humidity: 30%~90%
|
|
Air Pressure: 59KPa~107.4KPa | |
Dimension | 63*41*31mm |
Net Weight | 70g (Batteries Not Included) |
Package | 1 Unit/Box, 200 Boxes/Ctn |
Carton Size | 36.5*42.5*35.5cm |
G.W./Carton | 15KGS |
Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
Certificates | CFDA, FSC, ISO13485 & CE (TUV), DOC |
Warranty | 1 Year |
【Fingertip Pulse Oximeter Features】
1. Multi-Color TFT Display, 4 display modes, have big-font display, digital display and plethysmogram display;
2. Change directions manually according to patient observe needs;
3. Alarm lamp display and heart rate pulse synchronization;
4. Low power consumption, 50 hours continuous to work;
5. It has the function of Perfusion Index to better get the pulse oxygen perfusion;
6. Automatic power off when no signals for 8s;
7. Small and light weight, convenient to carry;
8. Accurately mornitoring even in low perfusion ≤0.4%;
9. Audible, visual alarm and low voltage warning indicator are available.
【Fingertip Pulse Oximeter Importance】
【Fingertip Pulse Oximeter Functions】
【Fingertip Pulse Oximeter Alarm Design】
【Fingertip Pulse Oximeter Test Reports】
【Fingertip Pulse Oximeter Qualifications】
Completed documents & certificates: CFDA, FSC, ISO13485, CE Certificate, DOC and Test Report etc.
