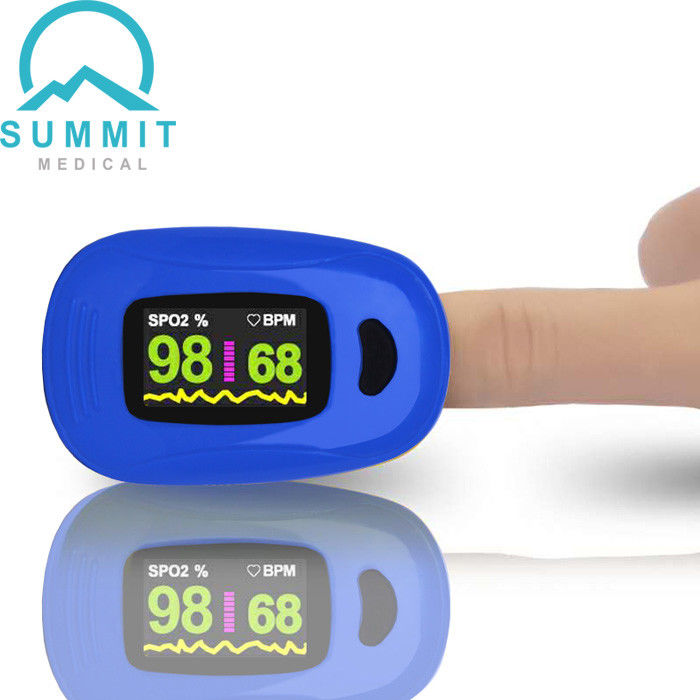

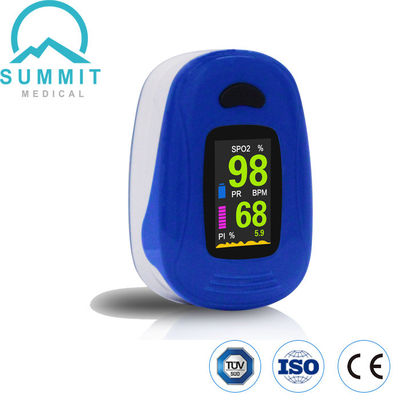

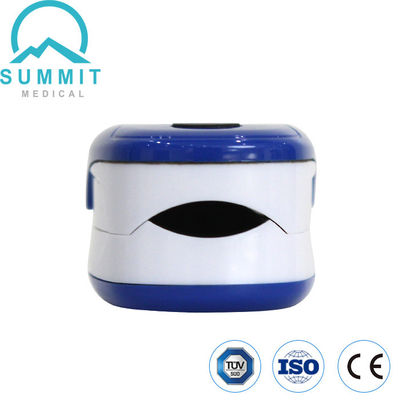

OLED Pulse Oxygen Meter

OLED Pulse Oxygen Meter
OLED Pulse Oxygen Meter OLED Pulse Oxygen Meter OLED Pulse Oxygen Meter

Large Image :  OLED Pulse Oxygen Meter

Product Details:
Place of Origin: China
Certification: CE, ISO13485
Payment & Shipping Terms:
Minimum Order Quantity: 200 Pieces
Price: Negotiable
Packaging Details: 1 Unit/Box, 200 Boxes/Ctn
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000 Units Per Day

OLED Pulse Oxygen Meter

Description
Item Name: Fingertip Pulse Oximeter Heart Rate Monitor With Plethysmograph And Perfusion Index Size: 63*41*31mm
Color: Yellow, Blue, Black Material: Acrylic, Metal, Plastic
Net Weight: 70g Display: OLED
SpO2 Measurement: 35%~99% Pulse Rate Range: 30bpm~240bpm
Low Perfusion: 0.3% Standards: IEC 60601-1-2:2014, ISO 80601-2-61:2011
High Light:

OLED Pulse Oxygen Meter

,

70g oxygen saturation meter

,

IEC Pulse Oxygen Meter

Fingertip Pulse Oximeter Heart Rate Monitor with Plethysmograph and Perfusion Index



【Fingertip Pulse Oximeter Parameters】



Pulse oximetry measures the oxygen level (oxygen saturation) in the blood.

It is a very simple device that is used to measure how well oxygen is being sent from the heart to different parts

of the body, including your legs, arms, among other parts.



Display Type
Multi-Color TFT Display; 1 Inch
Measurement Range
Spo2: 35%-99%
Pulse Rate(PR): 30BPM-240BPM
Measurement Time ≤20S
Resolution
Spo2: ±1%
Pulse Rate(PR): ±1BPM
Accuracy ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2
Low Perfusion
≤0.4%
Power
Two of 1.5(AAA Size) Alkaline Batteries
Power Consumption
<30mA
Automatic Power-off
The product will automatically power off when no signals for 8s.
Operation Environment
Operation Temperature: 5℃~40℃
Humidity: 30%~90%
Air Pressure: 59KPa~107.4KPa
Dimension 63*41*31mm
Net Weight 70g (Batteries Not Included)
Package 1 Unit/Box, 200 Boxes/Ctn
Carton Size 36.5*42.5*35.5cm
G.W./Carton 15KGS
Standards
IEC 60601-1-2:2014, ISO 80601-2-61:2011
Certificates CFDA, FSC, ISO13485 & CE (TUV), DOC
Warranty 1 Year



【Fingertip Pulse Oximeter Use Instruction】



1. Remove the battery cover, and insert the two AAA batteries following polarity marking indicates inside of the battery

compartment, then reposition the cover.
2. Slide your finger into the opening probe of the device, until the fingertip touches the built-in stop guide.

For best results, make sure the finger is centered within the finger guide.
3. Press the button to activate the oximeter from sleep mode, and then measurement interface will appear in 3 seconds.
4. The measurement result will be read directly from the screen within 8 seconds.
5. The oximeter will turn into sleep mode automatically within 10 seconds after the finger left the probe.



【Fingertip Pulse Oximeter Structure】



OLED Pulse Oxygen Meter 0





【Fingertip Pulse Oximeter Features】



OLED Pulse Oxygen Meter 1



【Fingertip Pulse Oximeter Power Monitoring】



OLED Pulse Oxygen Meter 2



【Fingertip Pulse Oximeter Advantages】



OLED Pulse Oxygen Meter 3



【Fingertip Pulse Oximeter Test Reports】



OLED Pulse Oxygen Meter 4



【Fingertip Pulse Oximeter Qualifications】



Completed documents & certificates: CFDA, FSC, ISO13485, CE Certificate, DOC and Test Report etc.



OLED Pulse Oxygen Meter 5



【Fingertip Pulse Oximeter FAQ】



Q1: What is normal for pulse oximeter reading?
A1: Values under 60 mm Hg usually indicate the need for supplemental oxygen.

Normal pulse oximeter readings usually range from 95 to 100 percent. Values under 90 percent are considered low.



Q2: Is this Fingertip Pulse Oximeter freely selling in European markets?
A2: Yes. Our Fingertip Pulse Oximeter is approved by both CE & ISO (issused by TUV).

Fully complied with Medical Directive 93/42/EEC.



Q3: Are free samples available before official mass purchasing?
A3: We can support you free samples, and you just need to bear the courier charge.



Q4: Why it is essential to have your blood oxygen levels checked?
A4: If you have symptoms of shortness of breath or if you are suffering from a long term heart or lung condition,

your doctor may recommend that you use a pulse oximeter. This device will help monitor your blood oxygen level and

notify you if the level is low. Oxygen is the gas that enables your organs to run smoothly.

If you have deficient blood oxygen levels, then vital organs in your body will not function optimally.


Most people need an oxygen saturation level of at least 95% to maintain the healthy function of cells.

However, having an oxygen saturation level lower than 95% for a short period cannot cause any damage to your body organs.

If oxygen saturation level falls below the optimal level, repeatedly your cell may be strained and eventually die leading to organ failure.


Pulse oximetry can indicate your current oxygen saturation level, and if it falls below the recommended level,

then it will show you how much oxygen you need. Sometimes your blood oxygen may fall without your knowledge.

This device can help you monitor your blood oxygen carefully, thus allowing you to necessary action fast

(such as using supplemental oxygen) if it falls below normal.
