Product Details:
|
| Item Name: | FDA Approved Medical Use Fingertip Pulse Oximeter | Size: | 58*36*32mm |
|---|---|---|---|
| Color: | Black And White | Screen: | Dual Color OLED Display |
| Display Direction: | 4 | Display Mode: | 6 |
| Parameters: | SpO2, PR, Waveform, Pulse Bar | SpO2: | 35%-99% |
| PR Range: | 30bpm~240bpm | Warranty: | 1 Year |
| High Light: | Waveform Fingertip Pulse Oximeter,FDA Approved Fingertip Pulse Oximeter |
||

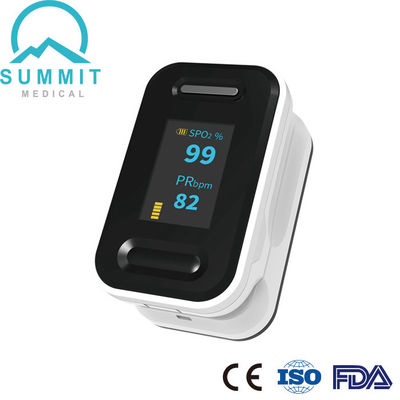

FDA Approved Medical Use Fingertip Pulse Oximeter
【Fingertip Pulse Oximeter Description】
Fingertip Pulse Oximeter provides a simple, fast, and reliable way to measure oxygen saturation level (SpO2) as well as pulse (heart rate).
| Display Type |
Dual Color OLED Display
|
| Measurement Range |
Spo2: 35%-99%
|
| Pulse Rate(PR): 30BPM-240BPM | |
| Measurement Time | ≤20S |
| Resolution |
Spo2: ±1%
|
| Pulse Rate(PR): ±1BPM | |
| Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion |
≤0.4%
|
| Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
| Power Consumption |
<30mA
|
| Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
|
Humidity: 30%~90%
|
|
| Air Pressure: 59KPa~107.4KPa | |
| Dimension | 58*36*32mm |
| Net Weight | 33g (Batteries Not Included) |
| Package | 1 Unit/Box, 200 Boxes/Ctn |
| Carton Size | 36.5*42.5*35.5cm |
| G.W./Carton | 15KGS |
| Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
| Certificates | CFDA, FSC, ISO13485 & CE (TUV), DOC, FDA |
| Warranty | 1 Year |
【Fingertip Pulse Oximeter Structure & Dimension】
【Fingertip Pulse Oximeter Features】
【Fingertip Pulse Oximeter Application】
【Fingertip Pulse Oximeter Package】
【Fingertip Pulse Oximeter FAQ】
Q1: What is normal for pulse oximeter reading?
A1: Values under 60 mm Hg usually indicate the need for supplemental oxygen.
Normal pulse oximeter readings usually range from 95 to 100 percent. Values under 90 percent are considered low.
Q2: Is this Fingertip Pulse Oximeter freely selling in European markets?
A2: Yes. Our Fingertip Pulse Oximeter is approved by both CE & ISO (issused by TUV).
Fully complied with Medical Directive 93/42/EEC.
Q3: Are free samples available before official mass purchasing?
A3: We can support you free samples, and you just need to bear the courier charge.
Q4: Why there are so many BLOODY CHEAP OXIMETERS with price less than $4, $3 or even less than $2 per piece?
A4: Well, you need the ability to identify the difference bewteen a Electronic Grade Oximeters and a Medical Grade Oximeter.
First of all, the executivce standards for the electronic one and the medical one are way different.
You can judge it from the certificates and test reports that sent by your suppliers, pay attention to the testing standards,
issuing parties of the certifications, for those points you can refer to A2.
For American market, pls check the manufacturer's information in US FDA website to check its FDA registration status and
FDA510K.
Second, the oximeters are mainly used in hospitals and emergency rooms by the doctors or physicians, so the reading must
be accurate, onsidering the safety and stability, it is strongly recommended to use a Medical Grade Oximeter.
At last, the price is decided by it production cost like raw materials, displaying way(LCD, LED, OLED etc.),
and intelligent designs (alarming, rotation etc.).
