Product Details:
|
| Item Name: | CE, ISO, FDA Fingertip Pulse Oximeter Blood Oxygen Saturation And Heart Rate Monitor | Size: | 58*36*32mm |
|---|---|---|---|
| Color: | Black And White | Screen: | Dual Color OLED Display |
| Display Direction: | 4 | Display Mode: | 6 |
| Parameters: | SpO2, PR, Waveform, Pulse Bar | SpO2: | 35%-99% |
| PR Range: | 30bpm~240bpm | OEM: | Available |
| High Light: | Waveform FDA Fingertip Pulse Oximeter,Black FDA Fingertip Pulse Oximeter,TUV Finger Clip Pulse Oximeter |
||

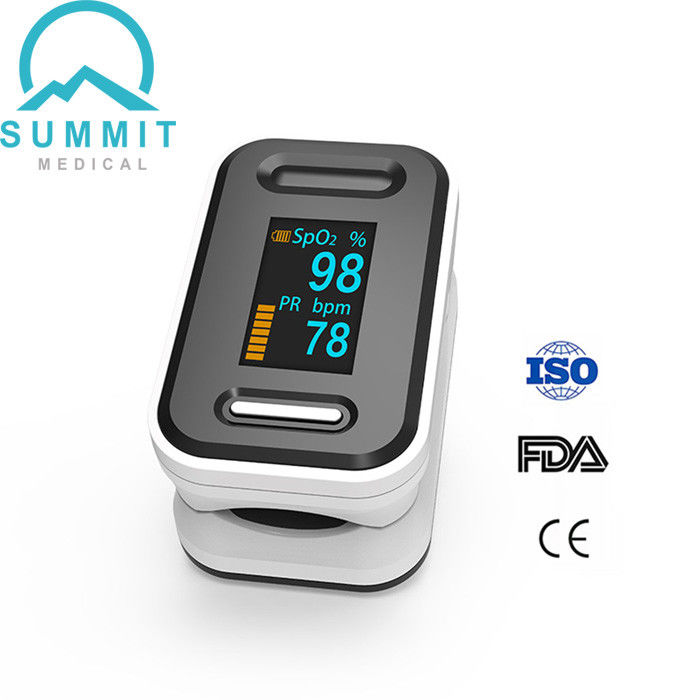

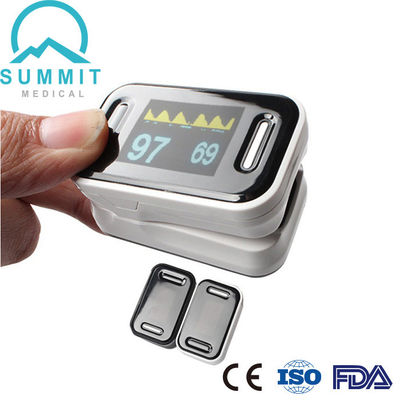

TUV CE, ISO, FDA Fingertip Pulse Oximeter Blood Oxygen Saturation and Heart Rate Monitor
【Fingertip Pulse Oximeter Description】
The Fingertip Pulse Oximeter is designed to provide an easy and accurate way to spot-check your blood oxygen saturation
levels and pulse rate up to 2% accuracy.
| Display Type |
Dual Color OLED Display
|
| Measurement Range |
Spo2: 35%-99%
|
| Pulse Rate(PR): 30BPM-240BPM | |
| Measurement Time | ≤20S |
| Resolution |
Spo2: ±1%
|
| Pulse Rate(PR): ±1BPM | |
| Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion |
≤0.4%
|
| Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
| Power Consumption |
<30mA
|
| Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
|
Humidity: 30%~90%
|
|
| Air Pressure: 59KPa~107.4KPa | |
| Dimension | 58*36*32mm |
| Net Weight | 33g (Batteries Not Included) |
| Package | 1 Unit/Box, 200 Boxes/Ctn |
| Carton Size | 36.5*42.5*35.5cm |
| G.W./Carton | 15KGS |
| Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
| Certificates | CFDA, FSC, ISO13485 & CE (TUV), DOC, FDA |
| Warranty | 1 Year |
【Fingertip Pulse Oximeter Structure & Dimension】
【Fingertip Pulse Oximeter Features】
【Fingertip Pulse Oximeter Application】

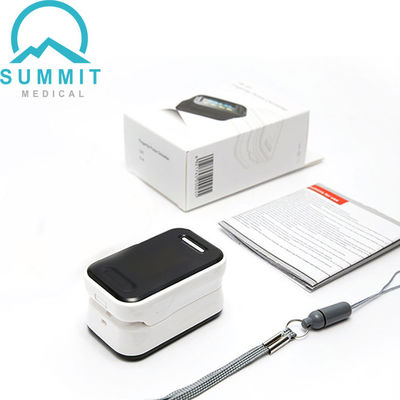

【Fingertip Pulse Oximeter Package】
【Fingertip Pulse Oximeter FAQ】
Q1: What is normal for pulse oximeter reading?
A1: Values under 60 mm Hg usually indicate the need for supplemental oxygen.
Normal pulse oximeter readings usually range from 95 to 100 percent. Values under 90 percent are considered low.
Q2: Is this Fingertip Pulse Oximeter freely selling in European markets?
A2: Yes. Our Fingertip Pulse Oximeter is approved by both CE & ISO (issused by TUV).
Fully complied with Medical Directive 93/42/EEC.
Q3: Are free samples available before official mass purchasing?
A3: We can support you free samples, and you just need to bear the courier charge.
Q4: What are the reasons for inaccurate reading?
A4: When your blood perfusion level is low, the spo2 pulse oximeter might have a hard time registering an accurate reading;
We suggest that you warm your hands and fingers before taking the measurements (You can do this simply by rubbing your
hands together); Following that, please also ensure that you keep your hand still because any movement can cause the
device to reset its reading; Nail polish and false fingernails may also cause false readings.
