Product Details:
|
| Item Name: | Medical Fingertip Pulse Oximeter Oxygen Saturation Monitor For Pediatric And Adult | Size: | 57*32*32mm |
|---|---|---|---|
| Color: | Blue | Screen: | Single Color LED |
| SPO2 Range: | 0% - 99% | SPO2 Resolution: | +- 1% |
| Pulse Rate Range: | 30-250 Bpm | Pulse Rate Resolution: | +- 1bpm. |
| OEM: | Available | HS Code: | 9018199000 |
| Highlight: | OEM Medical Fingertip Pulse Oximeter,Pediatric Medical Fingertip Pulse Oximeter,One Color LED Fingertip Pulse Oximeter |
||

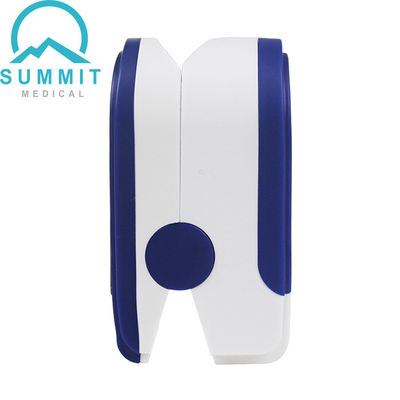

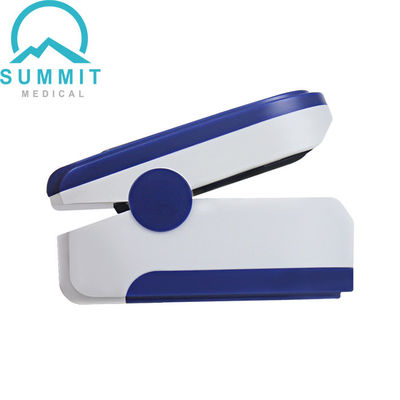

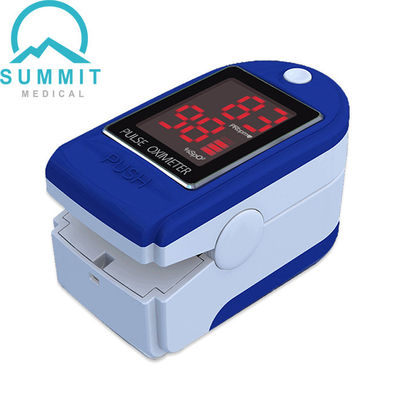

Medical Fingertip Pulse Oximeter Oxygen Saturation Monitor for Pediatric and Adult
【Fingertip Pulse Oximeter Specification】
This is a portable non-invasive device intended for spot-checking of oxygen saturation of arterial hemoglobin (SPO2)
and pulse rate of family numbers.
| Display Type |
One Color LED Display
|
| Measurement Range |
Spo2: 35%-99%
|
| Pulse Rate(PR): 30BPM-240BPM | |
| Measurement Time | ≤20S |
| Resolution |
Spo2: ±1%
|
| Pulse Rate(PR): ±1BPM | |
| Accuracy | ±1%(90%-99%) ; ±2% (70%-89%); unspecified(≤70%) for Spo2 |
| Low Perfusion |
≤0.4%
|
| Power |
Two of 1.5(AAA Size) Alkaline Batteries
|
| Power Consumption |
<30mA
|
| Automatic Power-off |
The product will automatically power off when no signals for 8s.
|
|
Operation Environment
|
Operation Temperature: 5℃~40℃
|
|
Humidity: 30%~90%
|
|
| Air Pressure: 59KPa~107.4KPa | |
| Dimension | 57*32*32mm |
| Net Weight | 25g (Batteries Not Included) |
| Package | 1 Unit/Box, 200 Boxes/Ctn |
| Carton Size | 40.5*39.5*22.5cm |
| G.W./Carton | 7.6KGS |
| Standards |
IEC 60601-1-2:2014, ISO 80601-2-61:2011
|
| Certificates | CFDA, FSC, ISO13485 & CE (TUV), DOC, FDA |
| Warranty | 1 Year |
【Fingertip Pulse Oximeter Dimension】
【Fingertip Pulse Oximeter Structure】
【Fingertip Pulse Oximeter Features】
Accurate Results
With advanced micro controller chip with premium red+infrared optical sensor, SpO2 and BPM results difference
within +/- 2%. With quality certification, safe and reliable.
Faster and Easier
Measurement with just 8 seconds. Adjust display direction to suit your different gesture with 1 button operate.
One color OLED display know your body status at-a-glance.
At-home Health Check
Suitable for all family number. Delivers clear and easy-to-understand visual representations of oxygen level and pulse rate.
Help early diagnosis and prevention of vascular/lung diseases through everyday monitoring.
Low Power Consumption
Automatically power off after 8 second no operation, with 2 AAA batteries (NOT include) could be continuously for more than 25 hours.
What You Get
1*pulse oximeter,1* Lanyard, 1*User Manual and worry-free after-sale service.
【Fingertip Pulse Oximeter Benefits】
【Fingertip Pulse Oximeter Different Displays】
Single Color LED Display
Dual Color OLED Display
Four-colored TFT Display
【Fingertip Pulse Oximeter Applications】
DESIGNED for Sports and Aviation Enthusiasts, and can be used as a heart rate monitor.
【Fingertip Pulse Oximeter FAQ】
Q1: What is normal for pulse oximeter reading?
A1: Values under 60 mm Hg usually indicate the need for supplemental oxygen.
Normal pulse oximeter readings usually range from 95 to 100 percent. Values under 90 percent are considered low.
Q2: Is this Fingertip Pulse Oximeter freely selling in European markets?
A2: Yes. Our Fingertip Pulse Oximeter is approved by both CE & ISO (issused by TUV).
Fully complied with Medical Directive 93/42/EEC.
Q3: Are free samples available before official mass purchasing?
A3: We can support you free samples, and you just need to bear the courier charge.
Q4: What can cause inaccurate measurement?
A4: a) Fingernail polish and false finger nail;
b) Excessive movement during measurement;
c) The user is in cardiac or is in shock;
d) If user’s hands or fingers are too cold.
