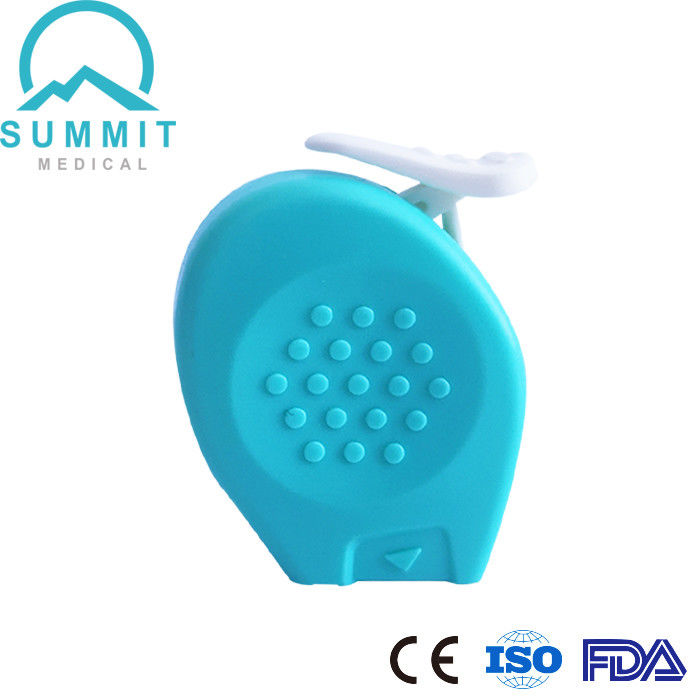

Qbutton Heel Incision Device for Newborn Screening Test

Large Image : Qbutton Heel Incision Device for Newborn Screening Test

Product Details:

Place of Origin:	China
Brand Name:	Qbutton
Certification:	MDR CE, ISO 13485, US FDA, US FDA 510K, UK MHRA, GMP
Model Number:	Heel Stick
Document:	Catalog-Qbutton Heel Stick ...II.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	10,000 Pcs
Price:	Negotiable
Packaging Details:	50 Pcs/Box, 20 Boxes/Ctn
Delivery Time:	30-35 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50,000 Pcs Per Day

Contact Now

Qbutton Heel Incision Device for Newborn Screening Test

Description

Item Name:	Qbutton Heel Incision Device For Newborn Screening Test	Specifications:	0.65mm1.40mm (Green), 0.85mm1.75mm (White), 1.0mm2.5mm (Yellow), 1.50mm2.80mm (Pink)
Sterilization:	Gamma	Shelf Life:	5 Years
HS Code:	9018390000	Incision Method:	Motion Blade
Latex Free:	Yes	Single Use:	Yes
Target Groups:	Preemie And Newborn	Advantages:	Perfect Blood Volume, Painless, Safe, Accurate

Qbutton Heel Incision Device for Newborn Screening Test

【Heel Incision Device Description】

The heel stick safety lancet is a single use, sterile medical device, which is designed for use of micro blood sampling puncture to obtain capillary blood samples from the heel.

【Heel Incision Device Specifications】

Depth	Length	Color	Application	Blood Volume	Package
0.65mm	1.40mm	Green	Micro-Preemie, Low Birth Weight <1kg	Low	50 Pcs/Box, 20 Boxes/Ctn
0.85mm	1.75mm	White	Preemie, Low Birth Weight 1-2.5kgs	Medium

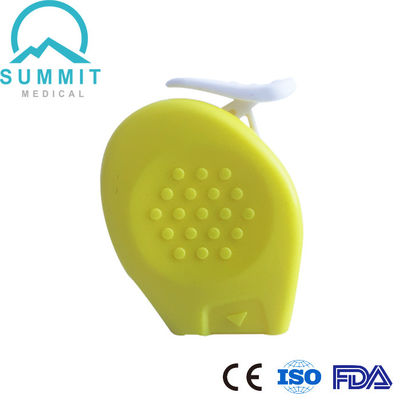

1.0mm	2.5mm	Yellow	Newborn, Birth 3-6 Months, 2.5-9kgs	Medium

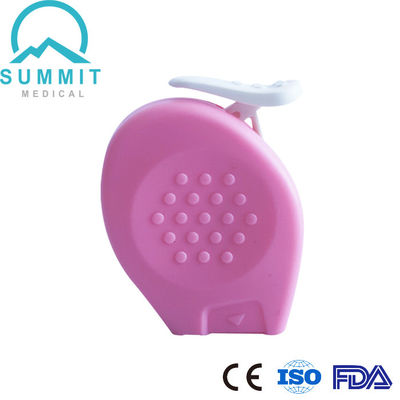

1.50mm	2.80mm	Pink	Toddler, Birth 6-24 Months, >9kgs	High

【Heel Incision Device Features】

Heel stick lancets only reach the superficial blood vessels;

Heel lancets aims to take enough blood sample from the newborn heel;

Motion blade design achieves low pain level;

Newborn heel incision device performs quick wound healing;

Full specifictions with different color coding meet different various blood volume needs;

lrradiation sterilization and sealed individual package for 5 years of shelf life.

【Heel Incision Device Details】

Qbutton Heel Incision Device for Newborn Screening Test 0

【Heel Incision Device Cautions】

1. Read the instructions carefully before use;

2. Using the heel lancet within the expiry date;

3. Do not use if primary package is broken;

4. For your safety, never use a heel lancet device that has been used by someone else. Single use Safety lancets are not intended for use on multiple individuals.

5. In the event of any serious adverse event, the manufacturer shall issue an advisory notice and take action in accordance with the manufacturer's procedures.

【Heel Incision Device Color Coding】

【Heel Incision Device Storage】

The heel stick lancets should be stored in a well-ventilated room away from light and moisture, free from corrosive gases.

【Heel Incision Device Use Instructions】

Qbutton Heel Incision Device for Newborn Screening Test 2

Step 1: Select the test site. Clean the site with an antiseptic swab and allow to air dry

Step 2: Open the blister package and take out the lancet device.

Step 3: Place the lancing device against the baby’s heel and activate by pressing downward on the button.Then collect the blood sample.

Step 4: Discard the used safety lancet into an appropriate container.
